The new bridge carries US 65 & 24 over the Missouri River just north of Waverly, Missouri. The bridge is 2,670 feet long and is a 15 span structure with a maximum span of 450 feet over the navigation channel. The main river unit is a 4 span continuous steel structure. The superstructure is supported by parallel flange steel plate girders for spans over the river and prestressed concrete girders on the approaches at each end. The river spans are supported on hammer head wall piers founded on drilled shafts. The open column bents for the approaches are supported on steel pile foundations. The bridge carries a 44 foot wide roadway and was built adjacent to the existing thru truss bridge which was used to carry traffic during construction of the new bridge. The project was let for bids under two separate contracts by MoDOT; one for the substructure and the second for the superstructure, grading for a relocated portion of the highway and concrete paving for the roadway. Jensen's experience with many similar projects, allowed us to be the successful low bidder on both contracts.
Contract: $92.9 Million 1.7 Mile Bridge crosses Lake Dallas, Texas
Contract: $37.6 Million Jensen's 14th crossing of the Missouri River
Contract: $56,000,000 2,478' bridge with a span of 425'
Contract: $65,171,000 State Route 13 over the Cumberland River
Bridge Width: 77 ft. 11 in. Bridge Length: 1,686 ft 2 in. Project Cost: $49.99M

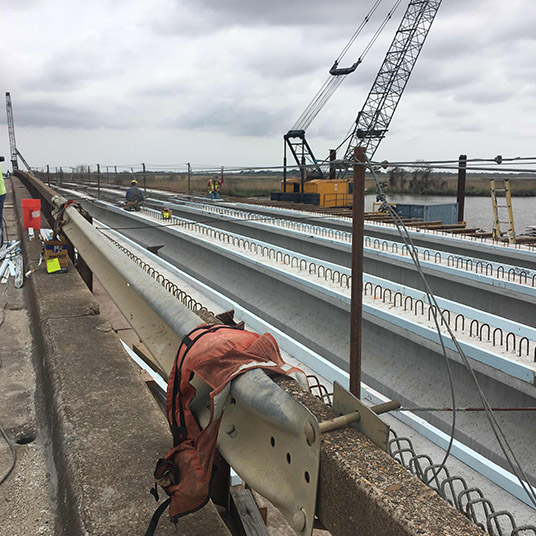

Contract: $14M 1,400 ft bridge over Hillebrandt Bayou
Contract: $43M Concrete Beam Bridge over Lake Texoma
Contract: $3,180,000 A connecting bridge over the Raccoon River
Contract: $878,697 Used a Value Engineering Proposal to change bridge design
Contract: $32.8M Jensen's 13th time crossing the Missouri River
The $24M project was opened in the fall of 2008 ahead of schedule. The 1500 foot long bridge is a 6 span structure with a maximum span of 280 feet.

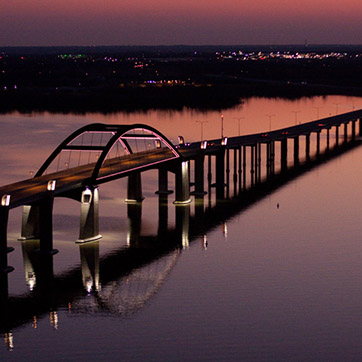

310' tied arch bridge
Contract: $14,537,501 Steel girder bridge replacement in Omaha, NE

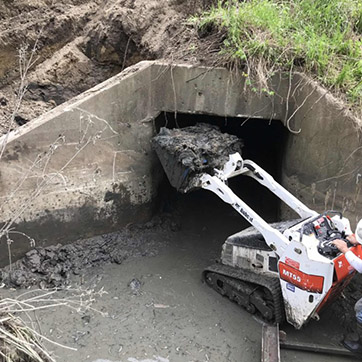

Building a culvert for 2nd Ave
Contract: $85M 7-year project included 18 bridges
Contract: $61M 18 spans resulting in a total bridge length of 3,280 feet
Contract: $50,949,500 Crossing the Mississippi River
Contract: $20M Twin bridges spanning 1,630'
Contract: $82,860,000 Two extraordinary, large and complex cofferdams were built
Contract: $47.7M Deepest drill shafts in Louisiana at time of project

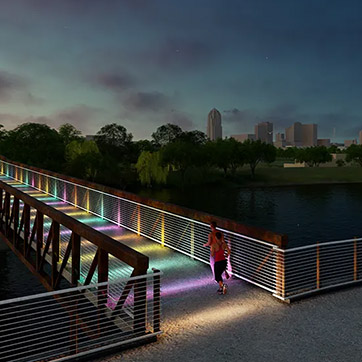

Contract: $11,431,000 Pedestrian Bridge connecting 15 miles of recreational trails
Contract: $6,982,870 Long bridge spans, falsework towers and multi-crane lifts
Contract: $14M Completed: December 2009
